Pallet Truck

Pallet Truck

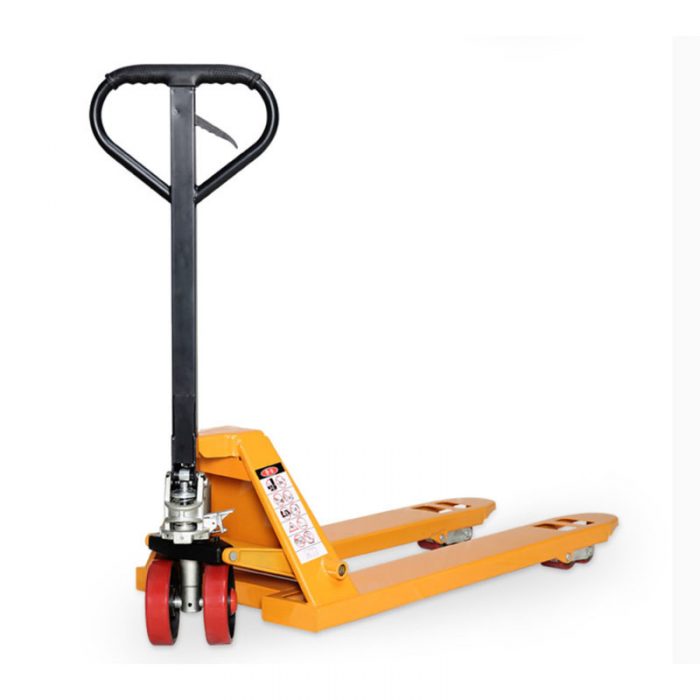

Hand Pallet Truck(HPT)

Hand pallet truck also known as manual pallet truck, hand pallet truck when use the carrying goods fork into the tray hole,by the ability to drive hydraulic system to realize the pallet load lifting and falling, and pulled by human complete handling operations.

Model 2t 2.5t（5500lbs） 3t 5t
Rated Load (kg) 2000 3000 3000 5000
Min. Height (mm) 85 85 85 90
Max. Lift Height(mm) 200 200 200 200
Fork Wheel (mm) 180*50 180*50 180*50 180*50
Overall Height (mm) 80*70 80*70 80*70 80*68
Overall Length (mm) 1220 1220 1220 1240
Nominal Length (mm) 1560 1560 1560 1600
Nominal Width (mm) 550 685 550/685 685
Fork Size W*H (mm) 150/55 160/65 160/65 180/65
Weight (kg) 55 70 68/72 140
Ground Clearance (mm) 25 15 15 25
Overall Dimensions 2270*550*620 2360*685*630 2260*550*630/
2260*685*610		 2000*685*550
Wheel Material Nylon/PU Nylon/PU Nylon/PU Nylon

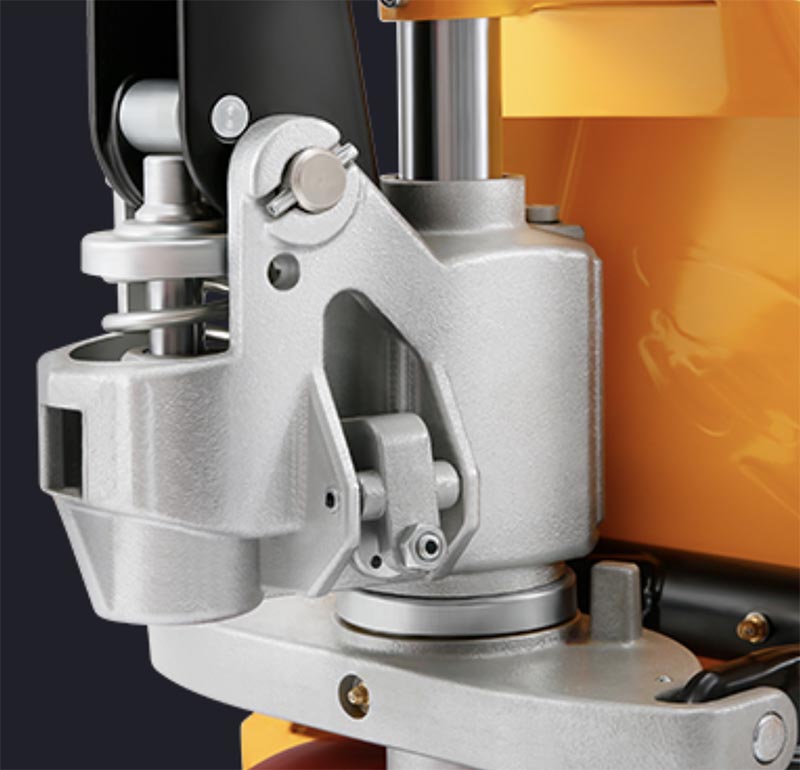

Integrated Pump Assembly

Safety and No Oil Leakage

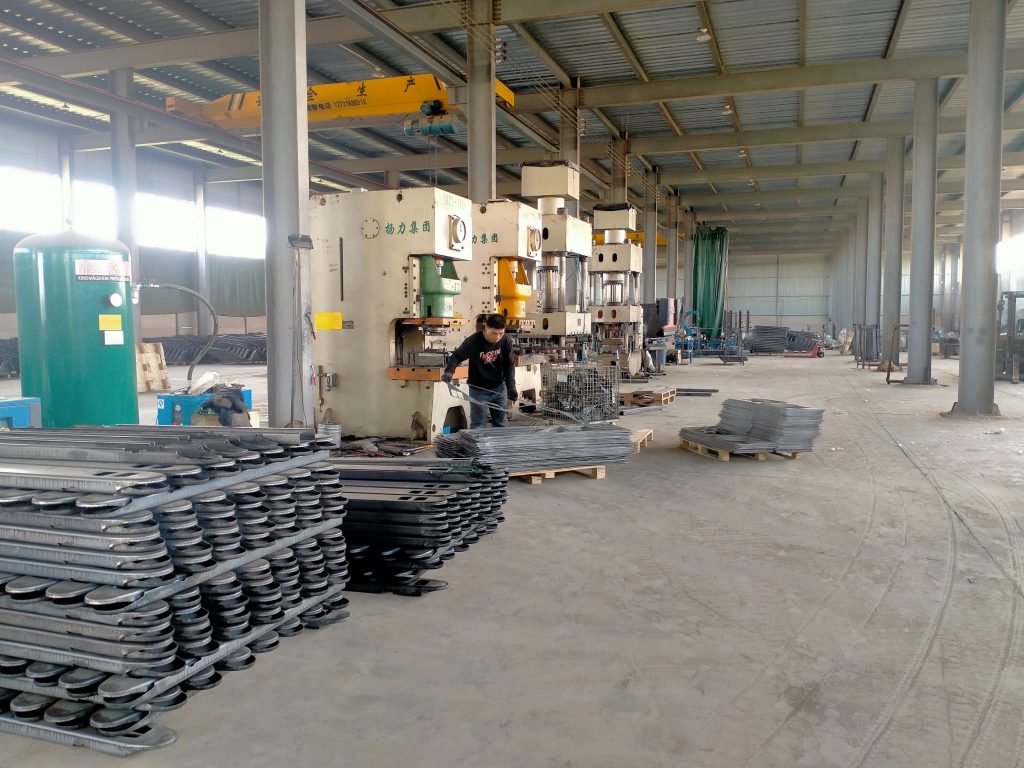

Our production line adopts the most advanced stamping equipment, one-time molding, to maximize the accuracy of each structural part.

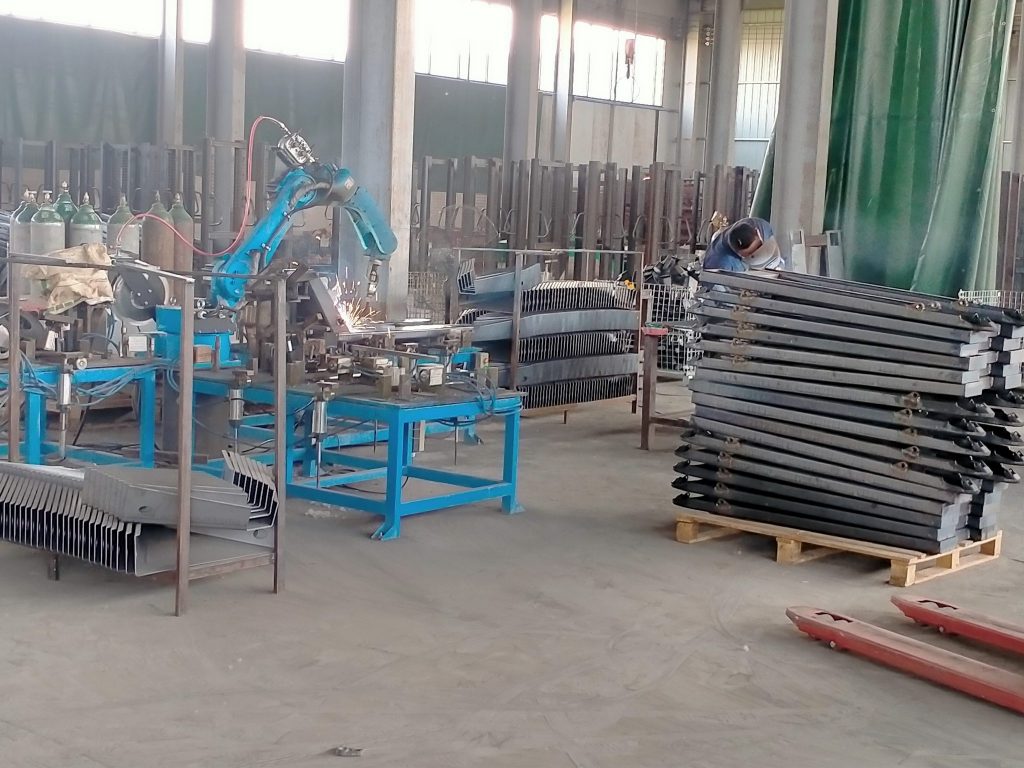

More than 90% of the welding uses robotic welding machines to ensure the quality and strength of the welding. Beautiful welds and high strength.

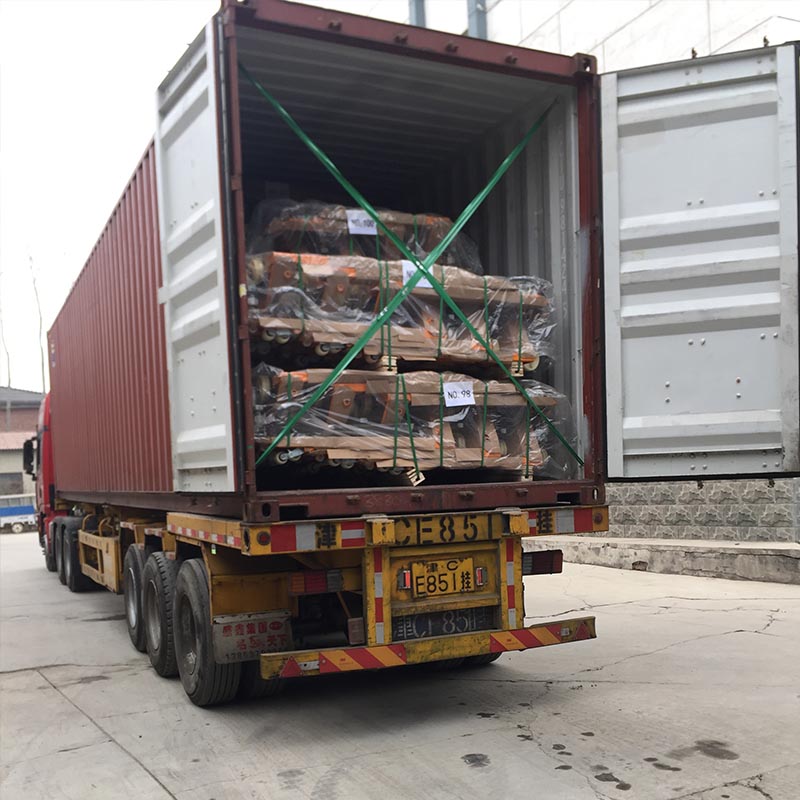

International market

Hundreds of thousand HPT has been exported to over 30 countries including the United Stateds, Europe, Asia, Middle East and Africa. The development of the international market has further reduced our production costs, so that we can provide customers with more cost-effective products.



The quality has been keep increasing with reasonable feedback from customers world widely.
