In many cases, the general overhead crane and gantry crane is not applicable. The workshop might not have enough place to install a crane, and we developed non-rail gantry crane.

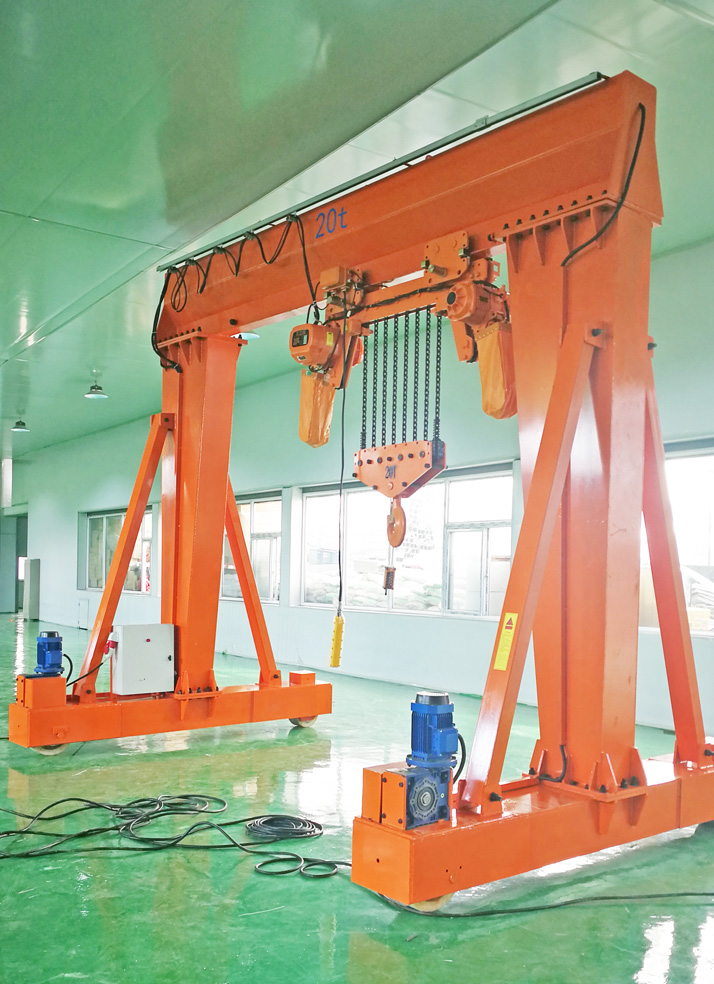

The non-rail gantry crane runs on floor. Capacity can be made up to 20t. In order to make it more useful, we design the leg can be adjustable to meet different roofs.

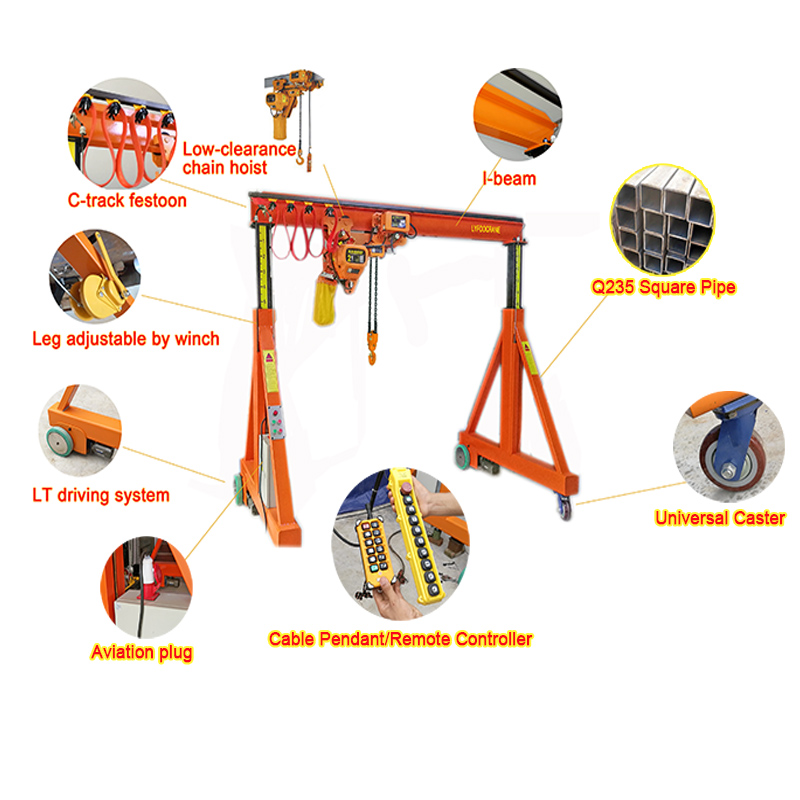

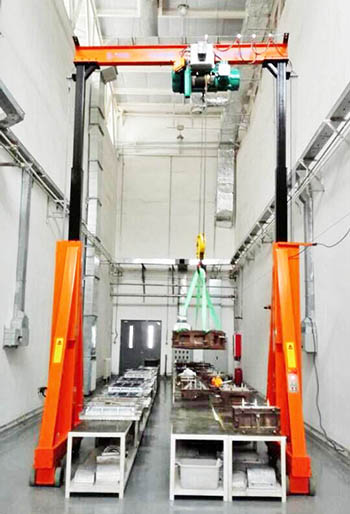

“Adjustable Leg” or “Telescopic Leg” It is a very useful feature. When the crane is under no-loading, the leg can be extended to by 20% -40%of the original height, to make the whole gantry higher, therefore, the gantry crane will give a higher effective lifting height. This is much flexible than a fixed height gantry crane.

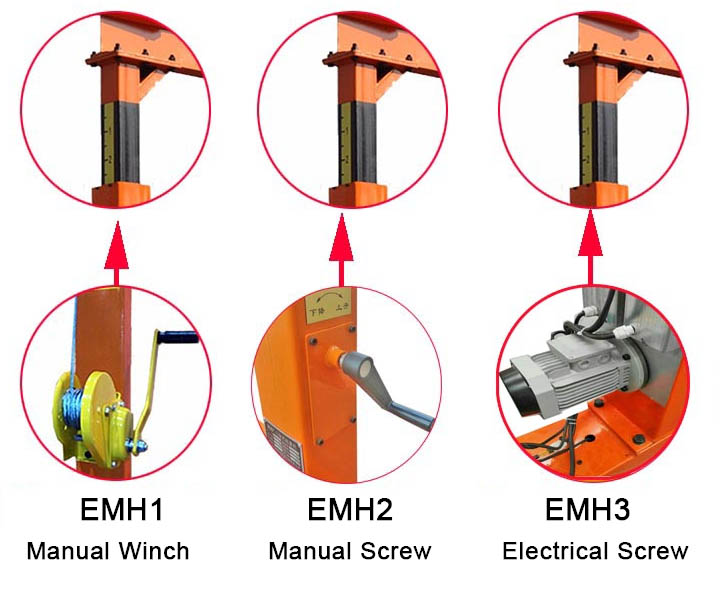

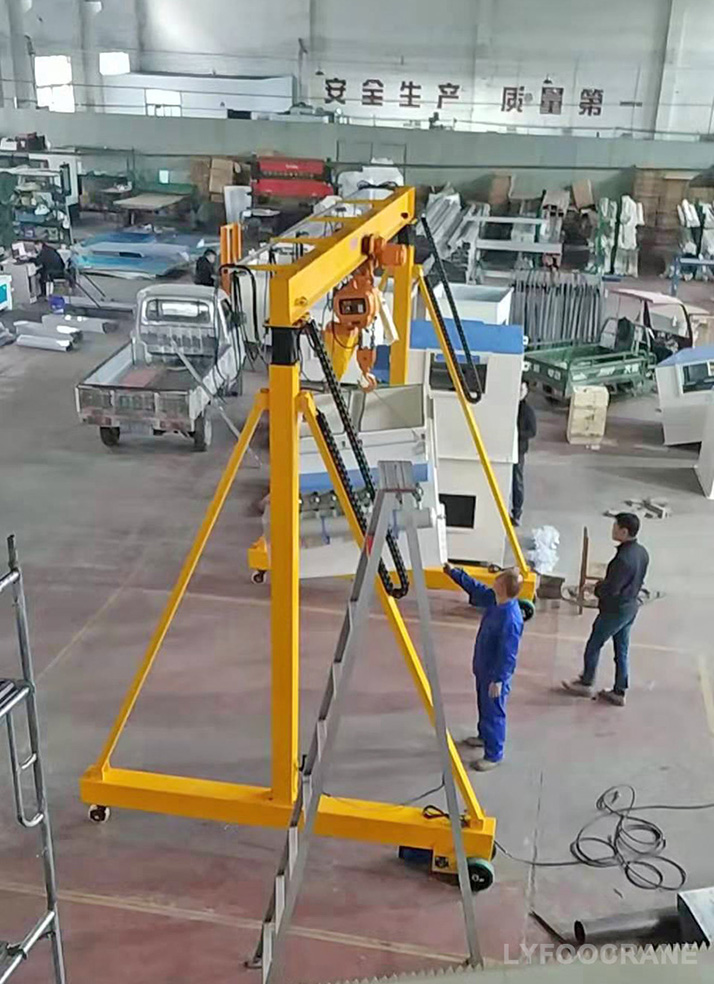

EMH1 Adjusted by Manual Winch
By 2 units of manual winches, the legs of the gantry can be extended easily.
EMH2 Adjusted by Manual Screw
Manual Screw driving is a electrical drives to extend the leg. The asending of the leg can be at “mm” scale and no-pin needed for lock the leg.
EMH3 Adjusted by Electrical Screw
Electrical Screw driving is a electrical drives to extend the leg. The asending of the leg can be at “mm” scale and no-pin needed for lock the leg.
| Model | EMH1 | EMH2 | EMH3 |
| Height Adjustable | by manual winches | by manual screws | by eletrical screws |
| Capacity | 0.5t~20t | 0.5t~20t | 0.5t~5t |
| Span | up to 10m | up to 10m | up to 10m |
| Lift height | up to 6m | up to 6m | up to 6m |
| Ascending interval | 200mm-500mm | 1mm | 1mm |
| Customized | YES | YES | YES |
| Budget | Low | Midium | Hight |

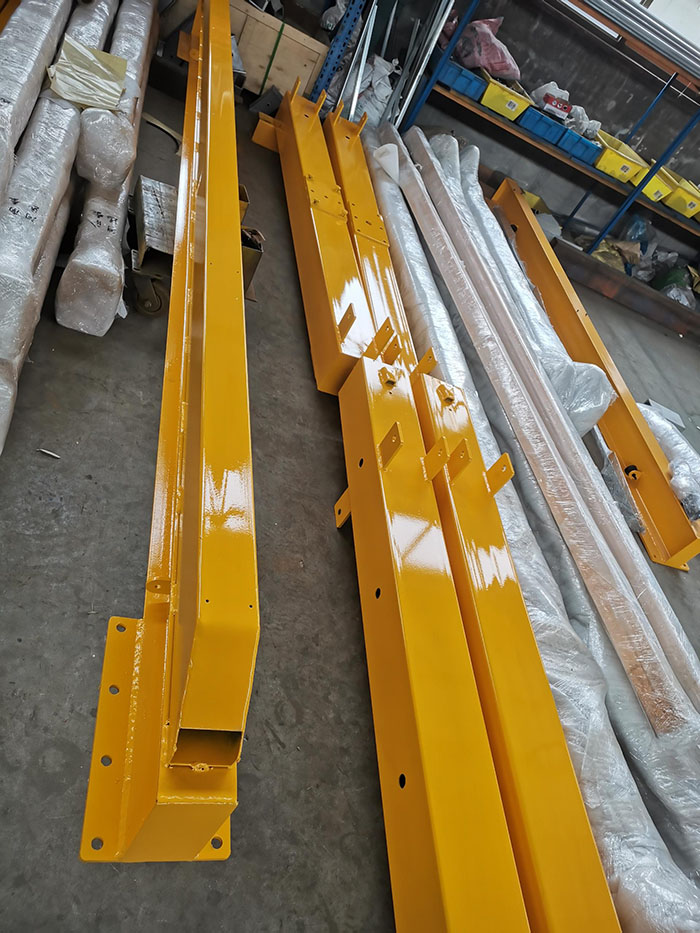

Loose Parts Designing
All structures are loose parts before delivering. It saves a lot shipping cost for customers.
It is also very simple to assembly or deassembly.

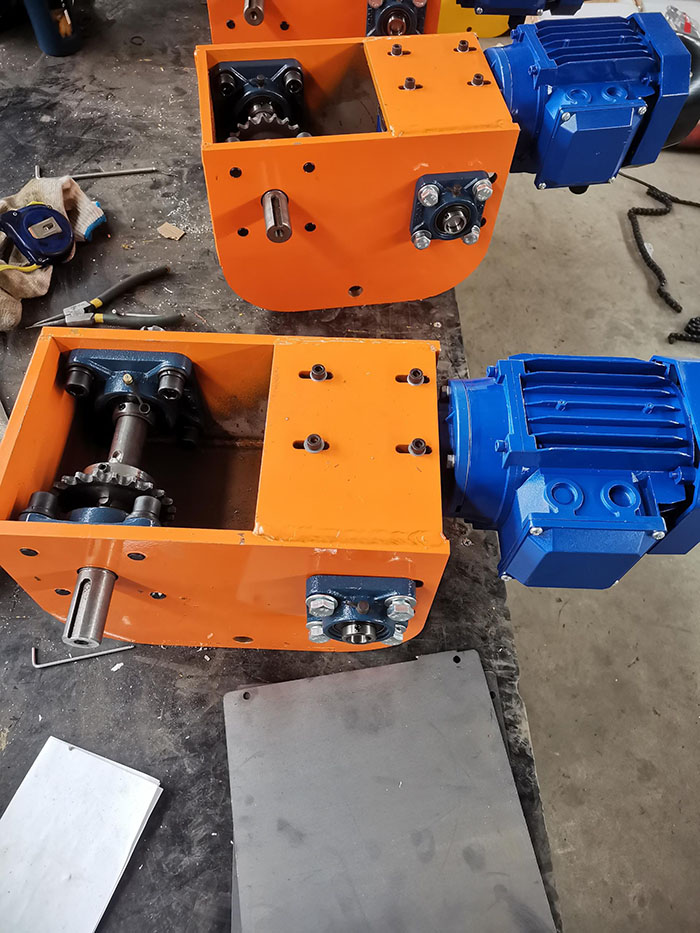

Electrical Driving
The crane can be designed full manual driven, full electrical driven or combinations.
Good Compatability

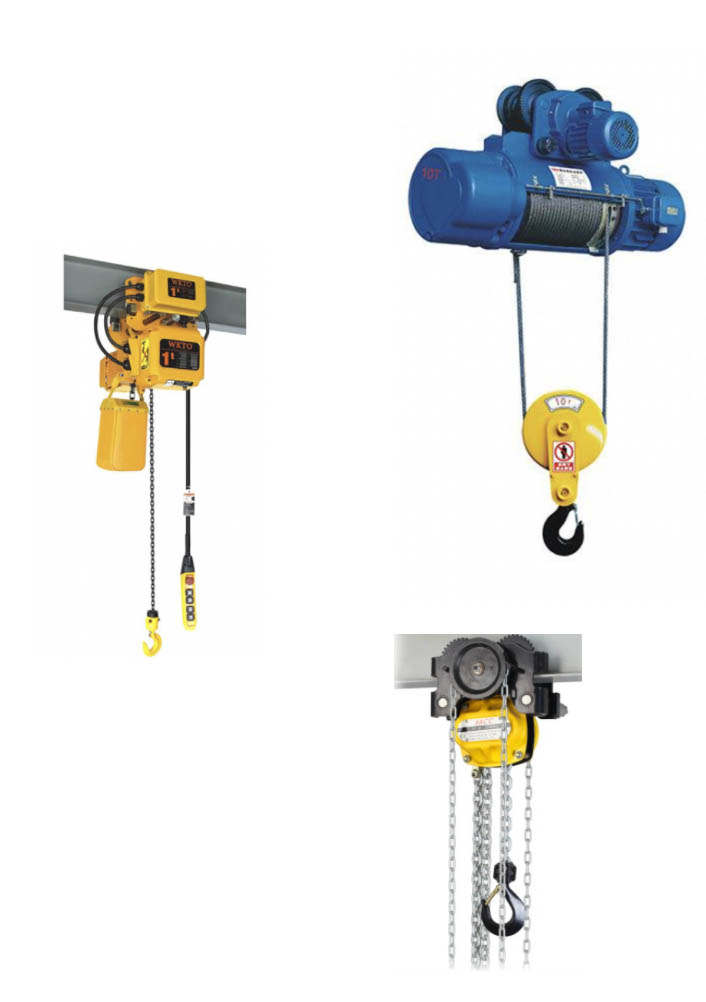

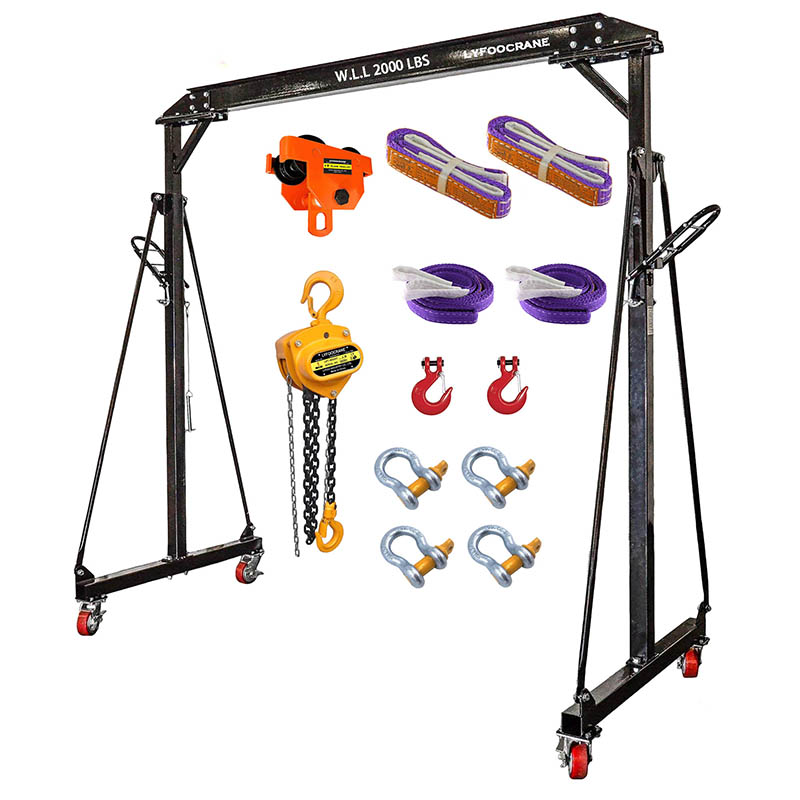

The I-beam accepts different type of hoist including chain hoist, wire rope hoist and winches etc.
