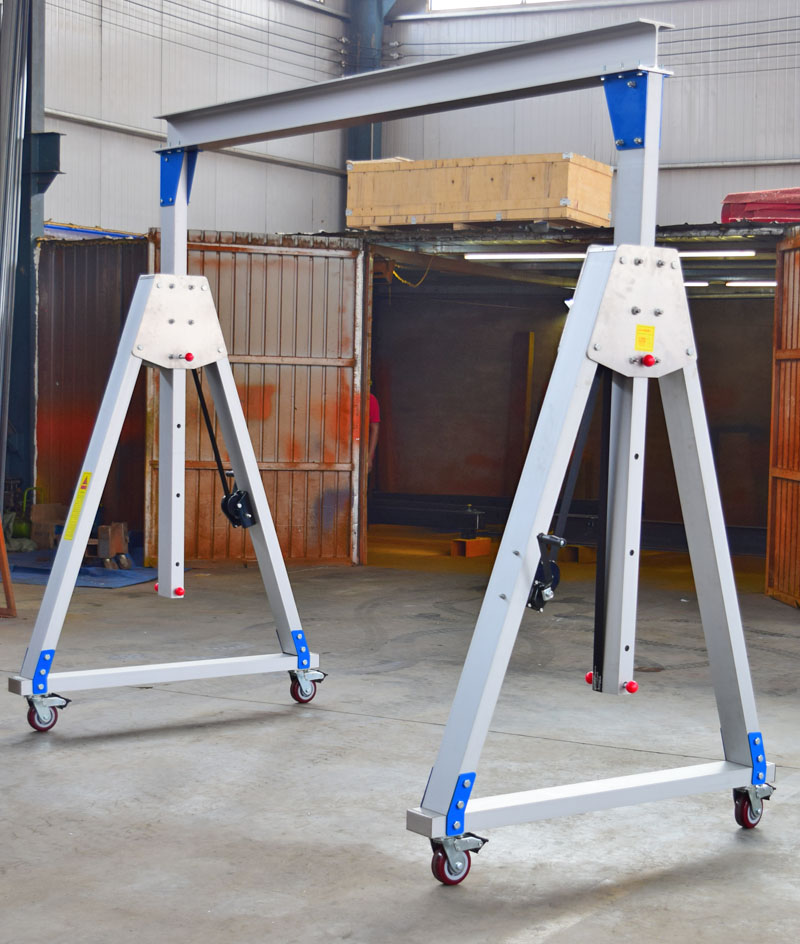

The LT-1 Seriers aluminum alloy gantry is a lightweight, durable, economical, flexible, and easy-to-install special lifting equipment. One of the best feature is the overall height can be adjustable.
| Capacity | WxH | WxH | WxH | WxH | WxH |
| 1t | 3m*(2-3)m | 4m*(2-3)m | 3m*(2.6-4)m | 4m*(2.6-4)m | 3m*(4-6)m |
| 2t | 3m*(2-3)m | 4m*(2-3)m | 3m*(2.6-4)m | 4m*(2.6-4)m | 3m*(4-6)m |
| 3t | 3m*(2-3)m | 4m*(2-3)m | 3m*(2.6-4)m | 4m*(2.6-4)m | 3m*(4-6)m |
Remarks: Bigger capacity and bigger size can be customized.

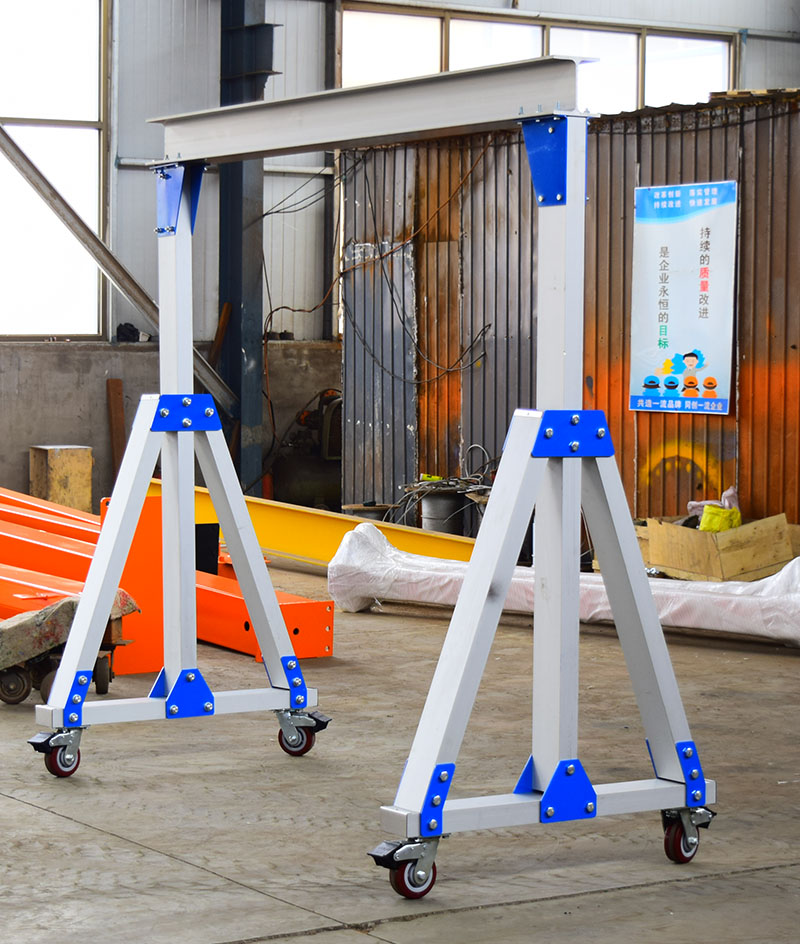

The height fixed gantry crane is a simple gantry which has a permanent overall height. It is easy to assembly and deassembly. The I-beam is compatible to electrical or manual hoists.
| Capacity | WxH | WxH | WxH | WxH | WxH |
| 0.5t | 2*3m | 3*3m | 3*4m | 4*4m | 4*5m |
| 1t | 2*3m | 3*3m | 3*4m | 4*4m | 4*5m |
| 2t | 2*3m | 3*3m | 3*4m | 4*4m | 4*5m |
| 3t | 2*3m | 3*3m | 3*4m | 4*4m | 4*5m |
| 5t | 2*3m | 3*3m | 3*4m | 4*4m | 4*5m |
Remarks: Bigger capacity and bigger size can be customized.

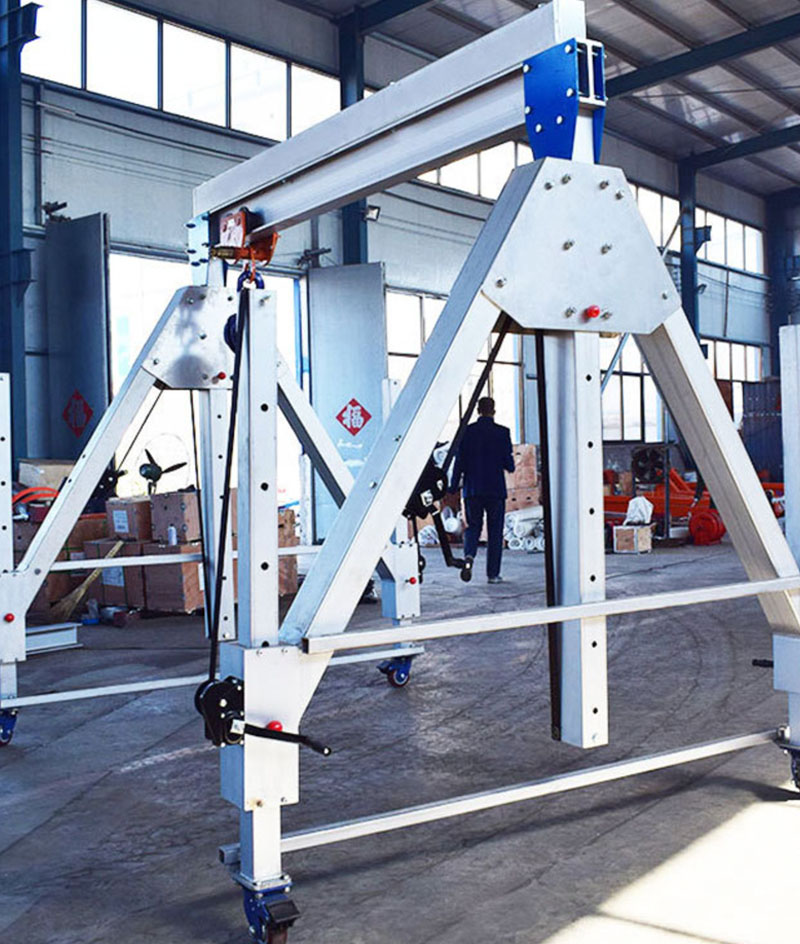

The overall height can be assended by 2 parts: leg and aux. leg. This designing can make the gantry has a super height than that of other cranes.

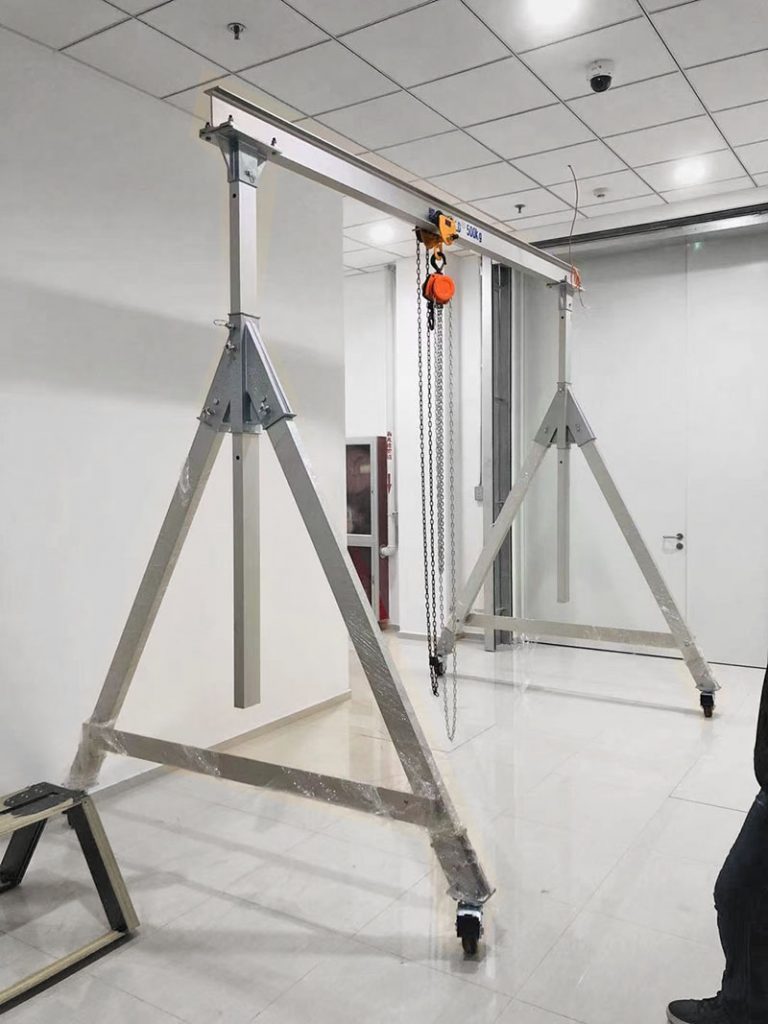

This is a super light weight crane, and each unit is only 50kg-115kg. It only take a few minutes to assemble it by 2 persons. Span and overall height can be adjustable by reposion the bolts and nuts.
