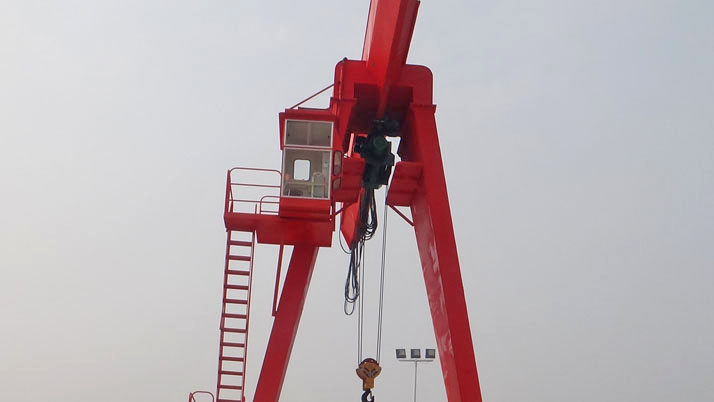

MH Single Girder Gantry Crane

MH single beam full gantry crane is matched with CD1/MD1 model wire rope hoist. It is a kind of track travelling midium-duty class gantry crane. The capacity from 3ton to 32ton, span from 12m to 35m or others , working temperature within-20–+40 centigrade.


This gantry crane is commonly used outside yard for loading/unloading and moving materials. The control is pendant pushbutton control, cabin control or remote control. If your workshop does not have any collumn to support an overhead crane, the gantry crane can also be a solution.

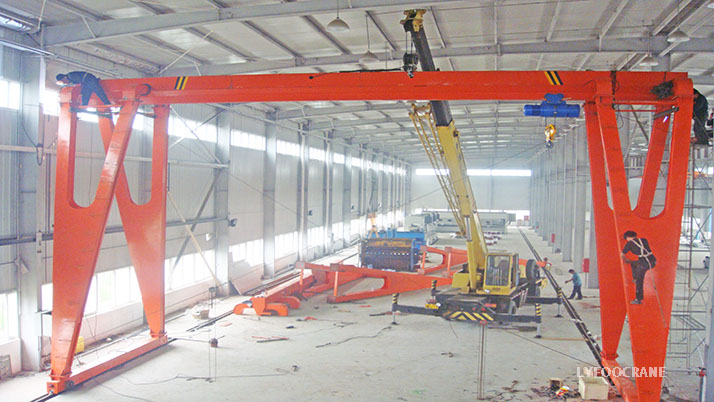

MH Single Girder Gantry Crane for Indoor

For the workshop where that is no collumn-runway supporting system, a gantry crane still can be chosen.  In this case, we will designed special end carriage to expand the working area and save the workshop area.  In some old designed workshop, the gantry crane can still be workable.

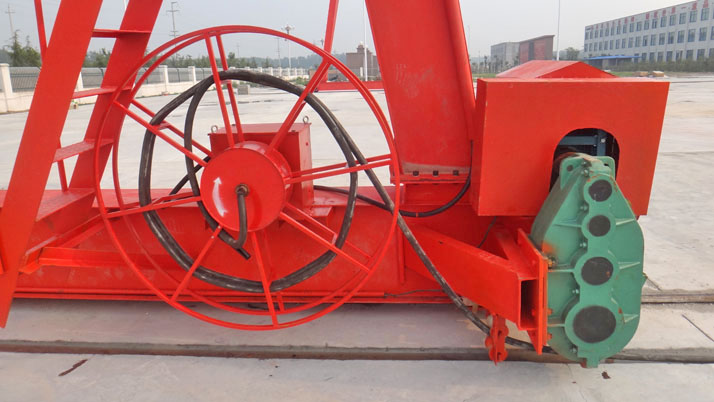

Cable Reel Power Supply System

The reel is motor driven with supply power to crane by extension of the cables.

Features of Gantry Crane

▲  Designed for indoor & outdoor use.

▲  The structure can be box type or truss type

▲  Equipped by electric wire rope hoist CD/MD type or Chain hoist.

▲  Power supply by cable reel system or bus bar

▲  Controlled via push button pendant/Radio remote/Cabin, separately or any combination.

▲  Tailored based on client’s detailed requirement.
