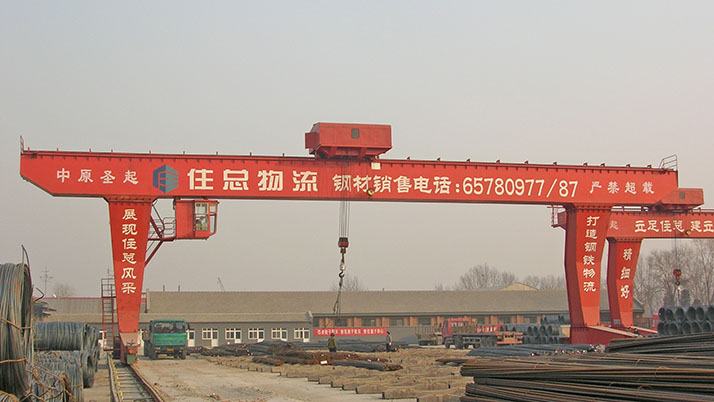

“L” Shape Gantry Crane

In order to reduce the budget for the client, we designed a single beam heavy duty gantry crane to replace double girder gantry crane, remaining the same hosting system and the travelling system.  This type of gantry crane called L-Model, which can be made up to 32t capacity.

Steel Structure

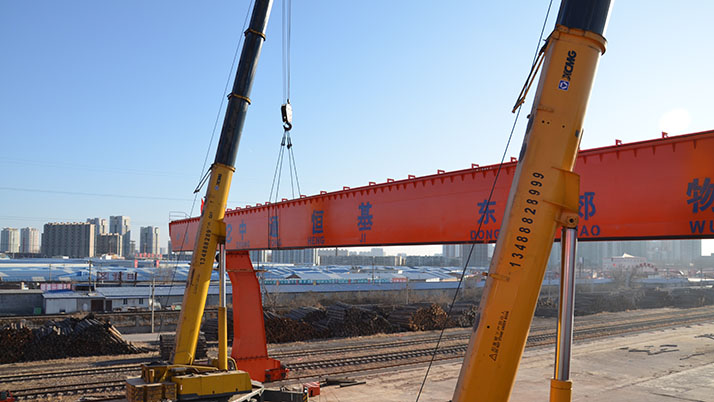

■  Single Girder

■  Single leg ( 2 legs total)

■  Winch type of hoisting and trolley system

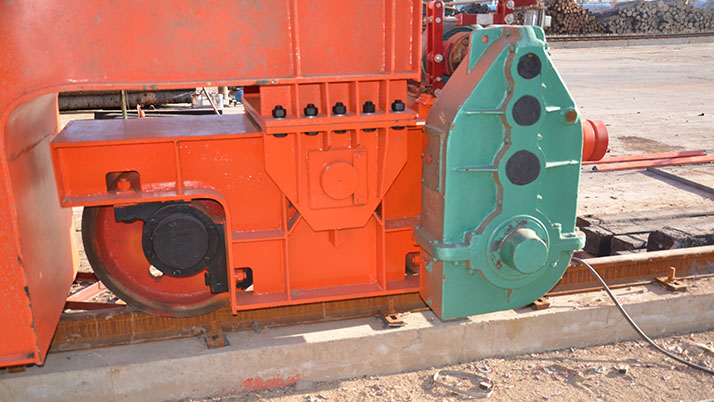

■  Heavy duty long travel system


■  Less weight, only 60% of the double girder type

■  Same work duty as double girder type

■  Same safety factor as double girder type


It is a good choice for logistic yard, steel distribution yard.
