» 4TN4000

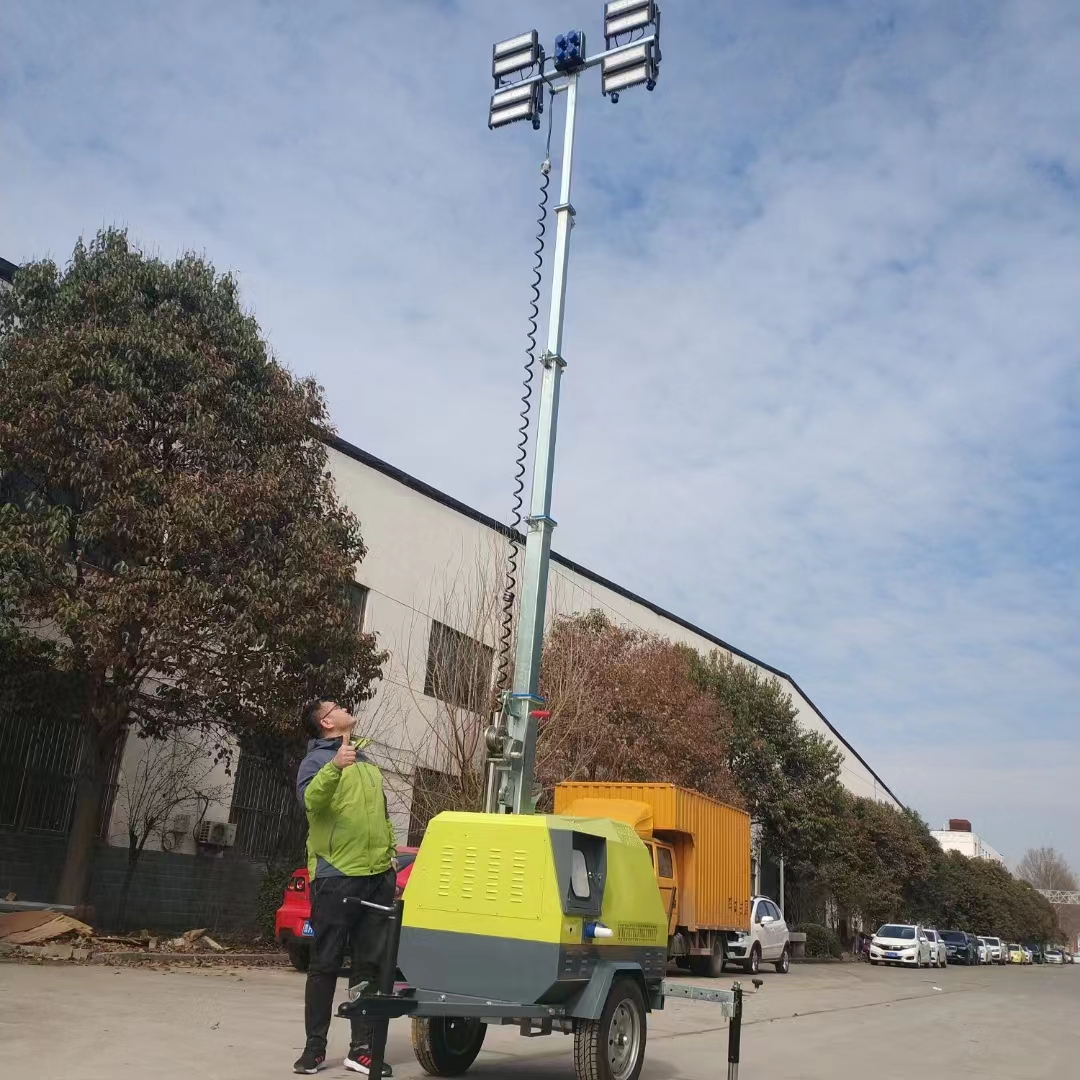

Lighting tower-13
Technical Data Unit 4TN4000 4TN4000B
Driving Mode Trailer Mounted
Engine Model KUBOTA Japan CHANGCHAI China
Engine Type Three Cylinder, Water-Cooled, Four Stoke
Power kw 12.6 18.6
Frequency rpm 1500/1800
Burning method E-TVS
Intake method Naturally aspirated
Emissioin class National Standard
Generator standard cofiguration Sparks
Rated voltage (50/60hz) v 230/240-120
Motor insulation class Class H
Motor protection class IP IP23
Headlights Metal Halide or LED
Luminous flux lm 440000
Number & Power of lamps w 1000×4/400×4
Number of pole sections 3
Fuel tank capacity L 110
Continuous working time h 65
Engine start method Key start
Max. wind speed m/s 20
Noise level dB 72 at 7m
Suspension & Brake Leaf spring suspension & Single axle without brake
Drwbar Adjustable lever with retractable adjustable guide wheel
Max. Lift Height m 9
Tire size 14
Max. traction Speed km/h 100
Dimensions (LxWxH) mm 4360x1430x1450
Weight kg 960
